Clean room sandwich panel are main products in clean room engineering, which is not only flame retardant soundproof and environmentally friendly.
Item No :
Metallic Sandwich PanelProduct Origin :
ChinaShipping Port :
ShanghaiLead Time :
30 DaysThickness :
50mm/ 75mm/ 100mmApplicable industries :
Pharmaceutical, Hospital, food, comesticCore Material :
Rock wool, Magnesium oxide, Aluminum honeycomb, Paper honeycomb, Polystyrene foam, etc.PRODUCT DETAILS
Introduction detail:
Wall thickness: 50mm, 75mm, 100mm
Regular width: 985mm, 997mm, 1180mm
Surface: PCGI/PCAL/SS304
Frame: hot-dip galvanized steel / Alum.Alloy
Filling material: rock wool, paper honeycomb, aluminum honeycomb, magnesium oxide or gypsum board, PU, etc.
Panel material: PE, antistatic, PVDF, salinized plate, stainless steel, nano-catalytic antibacterial plate, PVC film
Connector: aluminum alloy profile (3mm seam)
Sealant: Silicone
Use place: medical clean room, electronic clean room, operating room, food clean room, office partition, etc.
Classification:

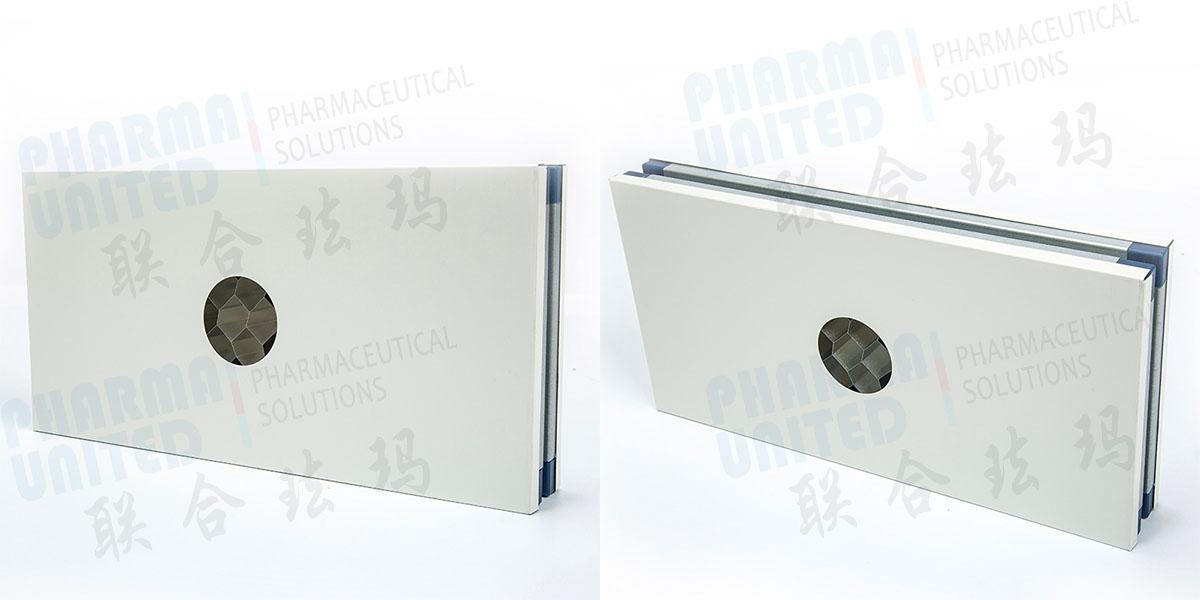

Honeycomb sandwich panel
Honeycomb core introduction: Aluminum hexagonal honeycomb, low density, 1/5 of the same thickness of the same board, 1/6 of the glass, 1/7 of the aluminum, greatly reducing the construction load and cost, because the middle interlayer contains a lot of air, Sound insulation (air insulation up to 30dB), heat insulation (thermal resistance up to 0.02 (m2 · K / W)), no flammable substances, fire rating up to A1, waterproof, moisture-proof, no harmful gas release, aluminum honeycomb panel surface It has extremely high flatness and good seismic performance, only one-eighth of the specific gravity of the glass curtain wall; the 22mm thick standard can achieve a load of 700 kilograms or more at a simple support of 1 meter and a deflection of 10mm. Aluminum honeycomb panels have been widely used in clean room partitions and ceilings due to their advantages of light weight, high strength and high rigidity.
The detail of Honeycomb sandwich panel：
